Amplifiers/Processors

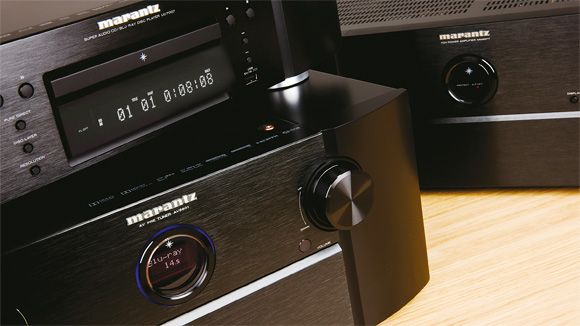

Marantz’s new flagship AV amplifier/processor duo sets sail on the HCC test bench with the new UD7007 universal player at the helm. While other brands, such as Pioneer and even Marantz’s sibling Denon, have opted for an integrated battleship AV receiver to top their range, Marantz is going for a fleet approach; the AV8801 AV processor frigate and the MM8807 amp destroyer. It’s all about performance. The system has been designed to deliver the sonic goods with more accuracy and firepower than a standard player/AVR combo can achieve.

This plan of dividing to conquer comes straight from Marantz’s illustrious hi-fi heritage. In the rarefied atmosphere of high-fidelity, where geeks pursue the n’th degree of audio precision by means both physical and meta-physical, the benefits of splitting the pre-amplifier and power amplifiers into separate units are well established. Apply that to home cinema and you can see that inside any AV processor are micro-current signals, high-speed digital DSP and sensitive video circuits. If you place power stages big enough to wake Frankenstein’s monster in the same box, chances are there will be some serious interference.

A better solution is to place the delicate circuits and high-voltage rails in their own separate metal enclosures, which Faraday tells us will stop any RF-born interference between the two. Marantz has taken the concept to its ultimate degree by over-engineering the boxes with copper chassis and braced panels, and then coupling them together with interference-rejecting balanced audio connections. The result is an enormous pair of boxes, sucking electricity from two wall sockets and taking up an acre of shelf space. Still, one must suffer for one’s art.

Thankfully, that is about as hi-fi tweaky as the Marantz system gets. Rather than strip back on niceties (which is a very hi-fi thing to do) the AV8801 is right up there with top-spec AVRs in terms of features and functionality.

It’s a true 11.2-channel processor, capable of delivering height and width channels in addition to seven normal channels and two subwoofers. There is full-fat Audyssey MultEQ XT32 room correction, upscaling to 4K for all video sources, AirPlay and a built-in four-port Ethernet network switch. There is a handy two-plus-one HDMI output, 192kHz/24-bit and FLAC audio compatibility, integrated Spotify, DLNA, MHL and iPod connectivity.

In fact I am starting to get a feeling of déjà vu. Drill down to some of the more brand-specific niceties, like the look of the menus or unique features, and things get very familiar indeed. The GUI is crisp and clean with logical and easy to navigate menus, and the excellent InstaPrevue feature lets you pop up a row of live sources on screen so you can select input by content rather than input name. Hmmm, so where have we seen this before…? Ah yes, Denon’s AVR-4520 flagship receiver.

Features like InstaPrevue and the look of the GUI indicate rather close collusion between these sibling brands and the Marantz control app is absolutely identical to the Denon app, albeit in white and gold rather than Denon’s blue and black. I get the feeling that Marantz engineers were more than peeking over the shoulder of the Denon team on this one. That’s certainly no bad thing, as the AVR-4520 is stunningly well-featured and the AV8801 delivers pretty much the same user experience and flexibility.

The MM8807 power amp shares exactly the same copper-bottomed chassis as the processor and weighs about as much as a small Death Star. Inside is pure Marantz engineering, with seven ‘current feedback’ discrete amplifiers offering a solid 150W apiece. The front panel simply offers a power button, which will have you hollering ‘Mwahahaaaa’ like an Austin Powers villain as you unleash over a kilowatt (well, that's what I did), and a button to disable the infuriating automatic power-off system.

You may have noticed something of a numeric miss-match here. The processor supports up to 11 main channels while the MM8807 is limited to seven outputs. Okay, so as tested we are stuck with seven channels but here’s an idea: given that the MM8807 is relatively inexpensive in terms of bang-per-buck (about £1.60 per Watt, in fact) you could add a second MM8007. Not only would that give you the required additional four channels, it would allow bi-amping of the key left, right and centre channels for peak performance, too. Just a thought.

Frustratingly the AV8801 does not offer freely-assignable XLR outputs so we had to use splitter cables to test bi-amping the front channels, but it was well worth it in terms of added headroom and extra grip.

Now on to the UD7007 universal disc player. From the moment you press eject, and the rubberised draw glides out as if on air suspension, the Marantz shouts quality. It also shouts Denon DBT-3313UD, because it uses exactly the same disc mechanism. I would stake my meagre reputation on it using a whole lot of the same electronic gizzards inside, too, as it even replicated a peculiar HDMI syncing issue I had with the Denon driving my unique multiple display test setup. And again, the Denon tie-up is no bad thing. The Denon is a cracking machine and the Marantz UD7007’s feature count reads like a what’s what of source-equipment goodness.

It is safe to say that I like the Marantz system a lot, but like all such dream systems there are a couple of monsters lurking in the shadows. Despite the beefy internal construction, I remain unimpressed with the exterior. The plastic side cheeks to the fascia feel a bit down-market and the top cover of the MM8077, in particular, has all the structural integrity of a biscuit tin.

The UD7007 and AV8801 have clearly emerged from different factories, as the displays are a slightly different dot pitch and slightly different shade of blue. XLR cables slip nicely into the processor and power amp, while those on the player required Vaseline and a hammer, and are probably never coming out again, they are so tightly wedged. The remotes are a bit lacklustre too; rather cramped, with an LCD display too small to be of any use for the AV8801 and, with the Marantz logo at the bottom, all too easy to pick up the wrong way around. And, despite Marantz being famed for its silver and gold finishes, this system is available in, as Henry Ford would say, any colour you like – as long as it’s black. Meh.

Setting up the processor is a breeze thanks to a very slick and easy to use setup wizard… hijacked from the Denon AVR-4520. It leads you through connections, network setup, video settings and auto EQ in a step-by-step manner than can be quickly skipped through if you know your HDMIs from your banana plugs. The setup concludes by running Audyssey’s MultEQ XT32, including Dynamic EQ, Dynamic Volume and Low Frequency Control. I recommend going the whole hog and measuring the full eight different points around the seating position to get the best balance. This is now much quicker than it was with early implementations of MultEQ XT, barely enough time to get a cork out now.

Once the wizard announces that its work is done you can still nip back into the menus to have a tweak, rename inputs and generally see what’s going on. The GUI itself is more efficient than it is a work of art and, like many GUIs these days, gives you an explanatory sentence for each highlighted feature. Well, that’s the idea, but in the AV8801’s case it’s somewhat undermined by a rather literal approach to the explanation. For example, highlight Audyssey LFC with the option to switch it on or off, and the explanatory sentence offers: ‘Turns Audyssey LFC on or off'. No word on what LFC actually means, what it does or why you might want it on or indeed off. These descriptors need a re-writeacross the GUI and my rates are very favourable...
